IT HYGIENIC MACHINE GUARDING FOR FOOD, BEVERAGE & PHARMA
Aluminum extrusion fence for cleaner food and pharmaceutical production areas
When food, beverage, pharmacy, or cleanroom operations need corrosion-resistant machine guarding that is easy to clean, Alfence Aluminum extrusion fence combines corrosion-resistant aluminum alloy profiles with a cured powder-coated surface. The modular safety fence helps replace rust-prone welded steel barriers while keeping robot cells, conveyors, and production zones physically separated.
Why hygienic production areas move beyond welded steel fence
Food and beverage plants, pharmacy distribution operations, and pharmaceutical or cleanroom areas may require frequent cleaning and a stable surface around equipment. Welded steel fence can rust in humid or washdown-prone areas; loose corrosion residue can become a contamination concern. Stainless steel can address corrosion exposure, but its cost and surface-finish requirements may not suit every indoor machine-guarding project. The material and finish must therefore be matched to the cleaning regime, humidity, and safety boundary.
| Project requirement | Alfence Aluminum extrusion fence response |
|---|---|
| Corrosion control indoors | Aluminum alloy profiles provide corrosion resistance; the powder-coated aluminum surface adds a second protective layer. |
| Cleanable guarding surface | Smooth finished profiles and panel options support routine visual inspection and cleaning. Confirm the cleaning chemicals and washdown method during project review. |
| Machine and area separation | A post-and-panel modular safety fence creates a defined perimeter around conveyors, robot cells, packaging lines, or other equipment. |
| Future line changes | Removable and reconfigurable panels support retrofit guarding and layout changes without rebuilding the whole boundary. |
| Outdoor or high-humidity exposure | The standard design is for indoor use; additional corrosion-resistant surface treatment can be specified for outdoor or demanding high-humidity projects. |
Structure and evidence behind the cleanable guarding approach
Aluminum profiles with a controlled powder-coat process

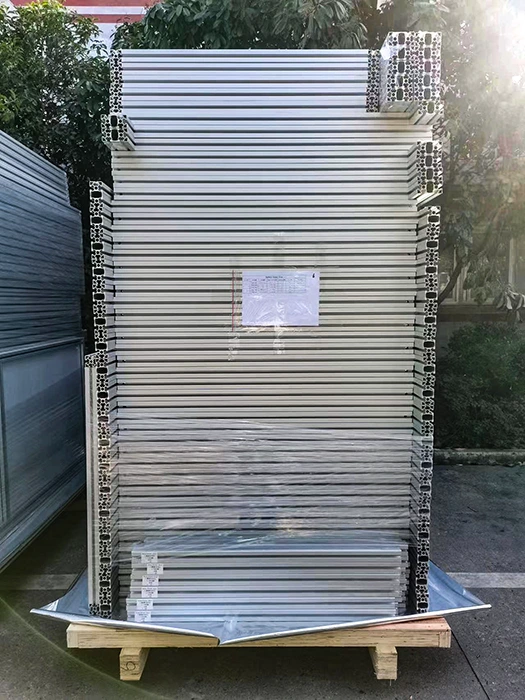

Alfence uses aluminum extrusion for the modular frame, followed by shot blasting and powder coating cured at 185 °C for 15 minutes. This combination is intended to reduce rust-related maintenance concerns and surface flaking associated with ordinary steel barriers. The finished frame is lightweight, corrosion-resistant, and suitable for indoor machine guarding where a smooth, easy-to-clean surface is required.
Panel choices for visibility and controlled access

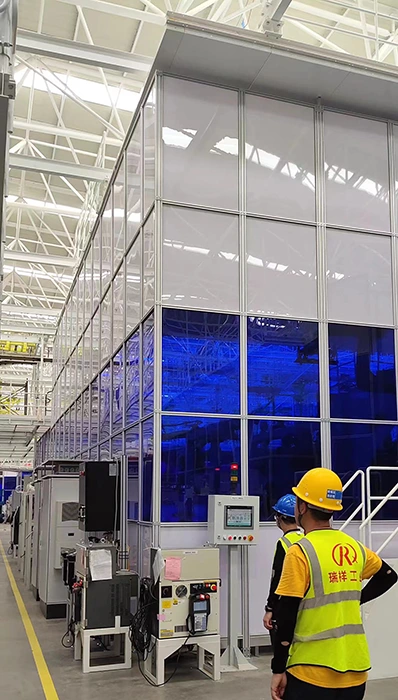

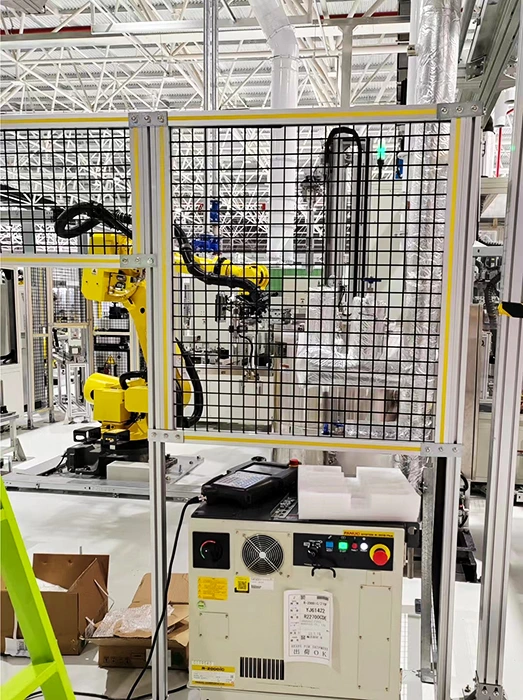

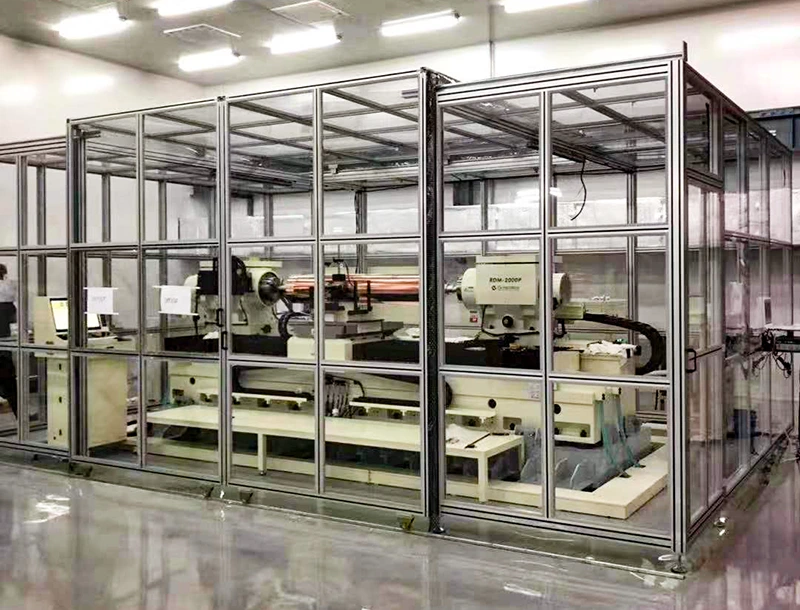

The post-and-panel system can be configured with welded wire mesh, transparent polycarbonate or acrylic panels, and access doors. Transparent sections keep equipment visible for operators and maintenance while maintaining a physical perimeter. Hinged, sliding, or folding safety doors, magnetic handles, safety interlock switches, and safety light curtains can be reviewed according to the machine risk assessment.
Modular dimensions that support practical layouts
Available design references include 40×40 mm or 45×45 mm posts, 20×100 mm welded mesh grid, 1,000, 1,800, or 2,000 mm panel heights, and panel widths from 200 to 1,200 mm. Single doors can reach 1,500 mm and double sliding doors up to 6,000 mm. Final dimensions, panel material, clearances, anchors, and cleaning requirements should be confirmed against the equipment and applicable guarding assessment.
Where Aluminum extrusion fence fits
- Food and beverage packaging lines where corrosion-resistant machine guarding and regular cleaning are part of the operating routine.
- Pharmaceutical and pharmacy logistics areas, including equipment perimeters and controlled production or storage zones.
- Cleanroom guarding and indoor plant installations where a smooth, inspectable barrier is preferred over rust-prone steel mesh.
- Conveyor guarding, palletizing zones, robot cells, and assembly line separation where panels may need to be removed or reconfigured.
- Retrofit guarding projects replacing welded steel fence, provided the selected finish is validated for the site’s cleaning agents and exposure.
Alfence is an indoor-rated modular safety fence. For outdoor placement or sustained high humidity, specify the required additional corrosion-resistant treatment rather than applying the standard indoor finish without review.
Specify the finish and cleaning conditions before ordering
Share the guarding perimeter, equipment layout, cleaning chemicals, washdown frequency, humidity exposure, access points, and required safety interfaces. SGF can then confirm the aluminum alloy profile, powder-coated finish, panel type, door configuration, anchoring method, and any additional surface treatment needed for the project.
Reduce rust-related contamination concerns without overbuilding the barrier
For food, beverage, pharmaceutical, and cleanroom applications, the result is a corrosion-resistant, smooth, modular machine-guarding boundary that is easier to inspect, clean, and adapt than a fixed welded steel fence in suitable indoor conditions.
