Machine safety fencing for ASRS conveyor crossings, pallet transfer zones and controlled warehouse access
MDFence ASRS Safety Fence for Conveyor Transfer Zones and Sliding Access Control
MDFence is a modular steel safety fence system built for automated warehouse and conveyor environments where long fence runs, visible guarding and dependable gate control matter. Framed mesh panels, sliding access options and bolt-on installation help integrators separate people from moving equipment without turning routine maintenance into a fabrication job.
Why transfer zones and ASRS perimeters need a different guarding approach
Warehouse automation projects rarely fail because a fence is missing. They fail because the guarding around conveyor transfer points, stacker aisles and maintenance access routes is too generic. Openings are oversized, doors interrupt material flow, or service teams end up bypassing access control because the layout was not engineered around daily use.
MDFence is a better fit for these applications because it combines clear machine visibility with modular perimeter planning. The system is used around storage and retrieval equipment, conveyor intersections and high-traffic logistics areas where access control, line-of-sight supervision and fast installation all matter at the same time.
- Long straight runs support warehouse perimeter zoning without custom welding on site
- Sliding gate options reduce aisle interference where swing doors waste operating space
- Framed mesh panels keep the structure rigid while preserving process visibility
- Yellow and black contrast creates an immediate visual boundary for operators and visitors
- Modular components make later expansion easier when conveyors or racking layouts change
Engineered around door movement, service access and repeatable layouts

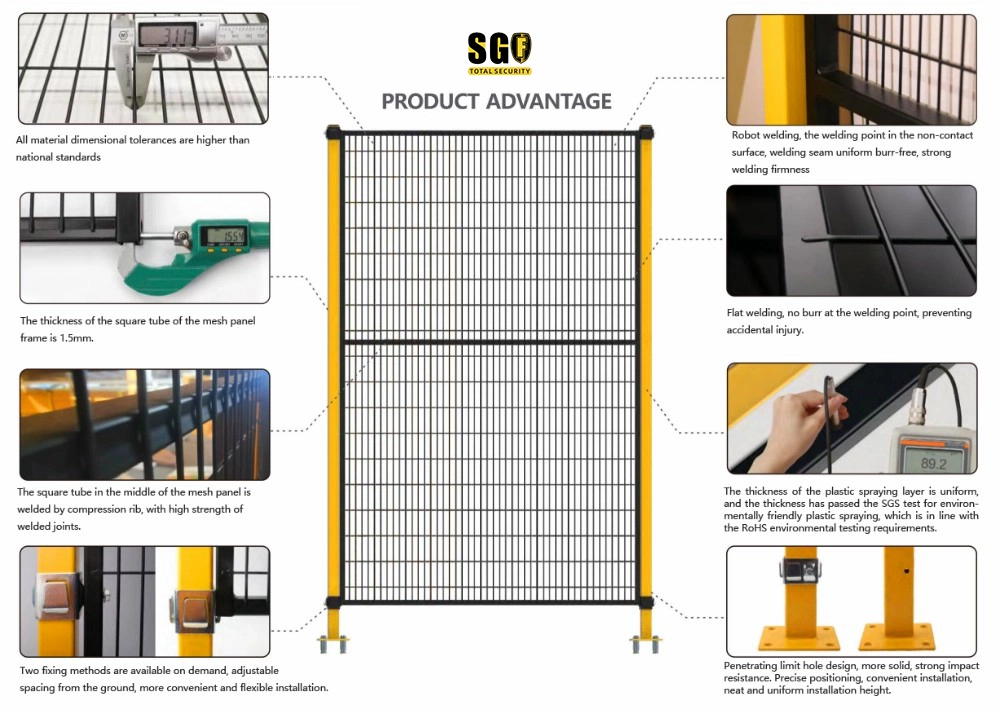

Project documentation for MDFence shows practical details that matter in real installations. Typical configurations use 60x60x1.5 mm posts, framed panels reinforced with 20x30x1.5 mm steel tube and modular layouts built around 4000 mm overall bay planning. For warehouse applications, that means the guarding system can scale across long conveyor corridors and still stay organized at access points.

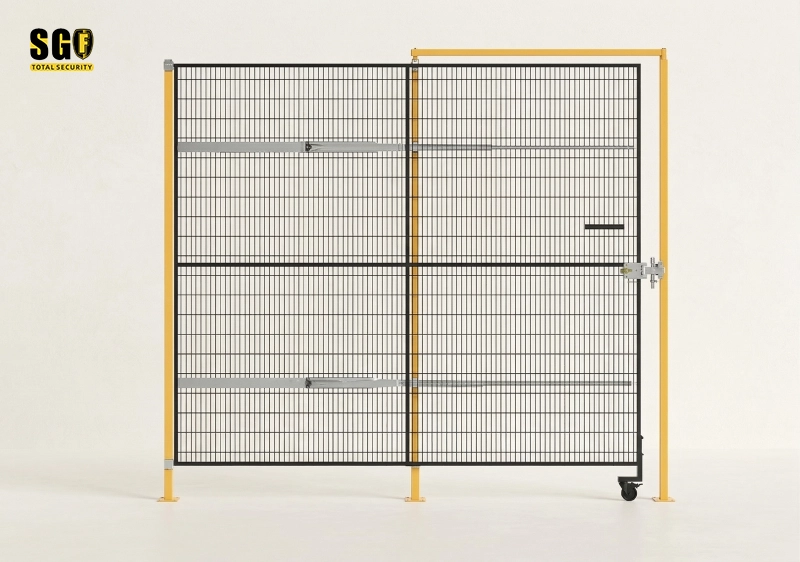

Sliding and double-track gate concepts are especially useful in ASRS and conveyor environments because they protect machine zones without forcing wide swing clearance into pedestrian or pallet flow paths. Where service access is frequent, support wheels, guide elements and dedicated gate structures help keep operation predictable.
Where this MDFence configuration works well

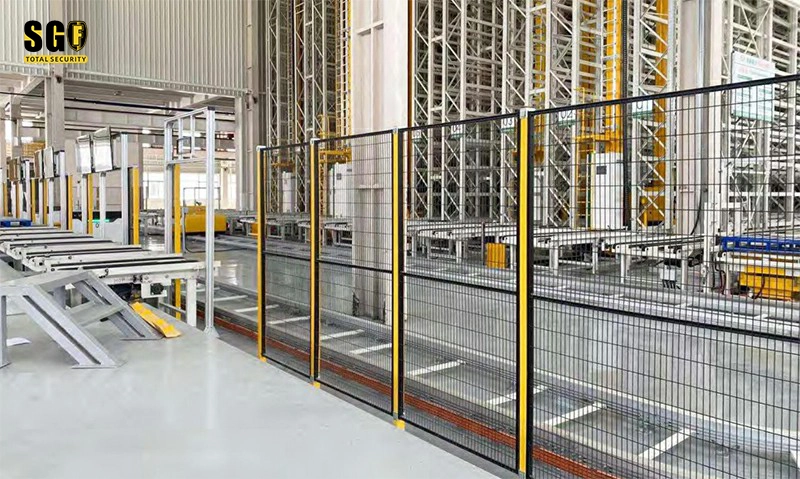

ASRS storage aisles
Create a clear perimeter around stacker crane travel zones while maintaining visibility for inspection and fault diagnosis.

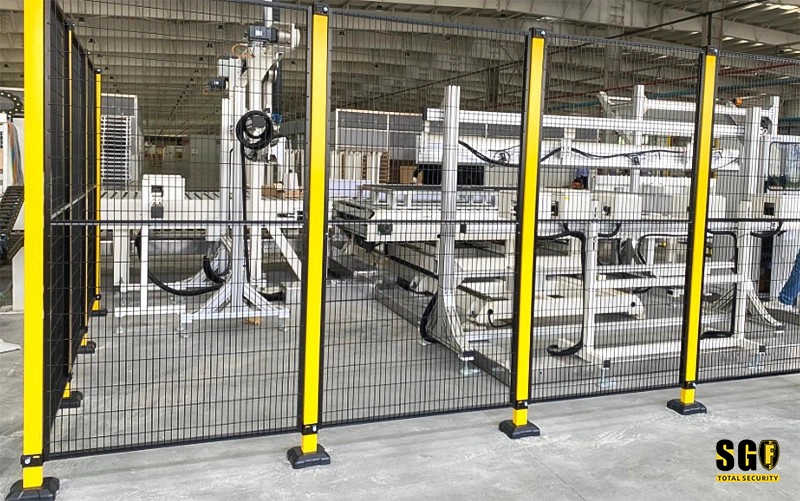

Conveyor transfer corridors
Protect long runs of powered rollers, transfer points and discharge lanes without blocking supervision of jams or product flow.
Pallet outfeed and infeed areas
Use controlled access openings where forklifts, AGVs or maintenance staff need predictable entry paths.
Warehouse maintenance walkways
Separate restricted equipment space from routine pedestrian circulation near crossovers, stairs and service routes.
Technical data for planning
| Product type | Modular steel machine safety fence for warehouse automation and conveyor guarding |
|---|---|
| Material principal | Q235 carbon steel framed mesh system; project documents also reference galvanized steel framed assemblies for specific panel structures |
| Typical post size | 60x60x1.5 mm |
| Typical panel planning length | 3940 mm panel with 4000 mm bay planning including post |
| Panel frame | 20x30x1.5 mm steel reinforcement frame |
| Abertura da malha | 20×100 mm safety mesh used in core MDFence documentation |
| Common height | 2000 mm |
| Ground clearance / visibility band | 150 mm + 150 mm in documented warehouse layout configuration |
| Gate options | Single sliding, double sliding, swing and other modular access formats based on layout needs |
| Surface finish | Powder coated industrial finish; common colors are safety yellow and black |
| Single group reference weight | 76 kg for one post, one panel and one top plate in a documented configuration |
| Project logistics reference | One warehouse-related package set documented at 4560 kg total and 13 m³ for shipping planning |
What buyers and integrators gain from this layout
For OEMs, system integrators and warehouse operators, the value is not just the fence panel itself. The real gain comes from layout discipline. A modular guarding package built around known post spacing, repeatable panel widths and purpose-matched access doors is easier to quote, easier to install and easier to expand later.
- Less field modification when conveyor routes or aisle boundaries are defined early
- Better use of floor space than oversized swing-door concepts in narrow logistics zones
- Cleaner coordination between guarding, access hardware and maintenance routes
- More predictable export packing and shipment planning for multi-zone projects
- Improved visual control for supervisors who need to monitor equipment without entering the hazard area
Installation concept and project support

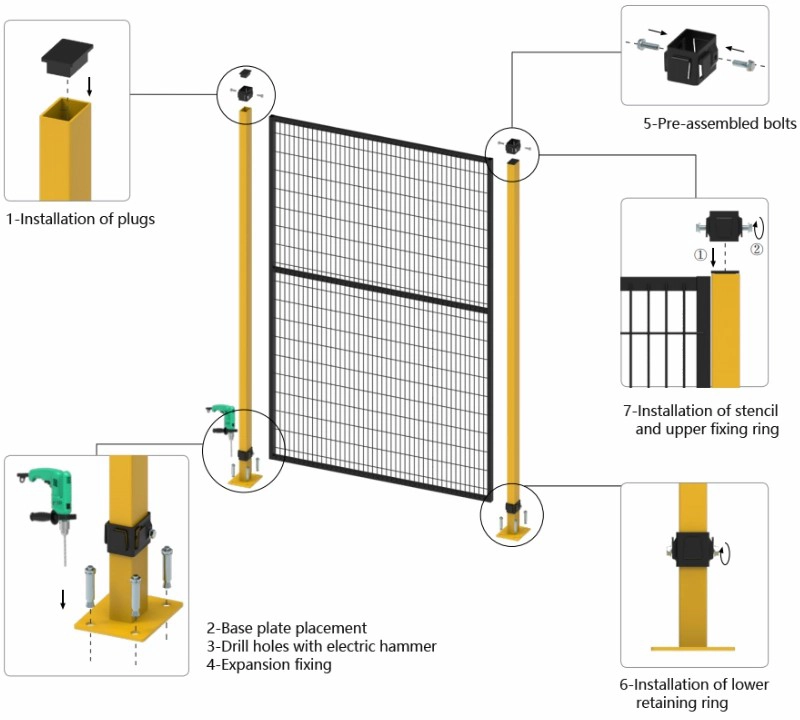

MDFence is designed for cold assembly rather than site fabrication. Posts are fixed to the floor, clamps are installed, framed panels are mounted and the gate package is aligned according to the access direction and machine envelope. This approach helps reduce installation disruption in active facilities and supports phased deployment when different conveyor or ASRS zones come online at different times.
If your project includes crossover stairs, service doors, pallet openings, interlocked access or long perimeter runs, our team can help convert the equipment layout into a practical guarding package with the right mix of bays, openings and door structures.
Planning a warehouse automation guard fence package?
Send your conveyor layout, aisle widths, gate opening requirements and equipment perimeter dimensions. We can help define an MDFence configuration for ASRS zones, transfer lines, pallet handling stations and service access points.
