Walk into any busy auto parts distribution center. Look at the sorting aisles. You have engines, heavy axles, and irregular metal components stacked high on Automotive Parts Storage Racks. Forklifts are rushing to hit picking targets. It is tight. It is loud.
Look at what separates your picking aisles from the automated zones or heavy traffic areas. I have spent 20 years dealing with custom metal storage and logistics equipment, and I still see warehouse managers making the same stupid mistake. They buy expensive Heavy Duty Pallet Racking Solutions, then hire a local guy to weld cheap angle iron and flimsy wire mesh around them.
It is a complete joke.
A forklift driver misjudges a turn and taps that cheap fence. The iron bends. The hinge drops. Now your safety interlock switch misaligns, throwing a false Safe Torque Off (STO) signal. Your automated conveyor or sorting line shuts down. You lose an hour of capacity over a twenty-dollar bent hinge.
Then the EHS auditor shows up. They look at those huge holes in your cheap, locally welded wire mesh. Because a worker can easily stick an arm through those gaps to reach the racks, safety regulations force you to push that fence 850mm away from the hazard.
Think about that math. You lose almost a full meter of premium floor space per rack row. Your warehouse is supposedly “out of space,” but you are wasting thousands of square feet on empty air just to pass an audit.
Next month, your logistics flow changes. You need to reconfigure the Automotive Parts Storage Racks. Your warehouse freezes. You pull hot work permits. Two guys stand in the aisle with angle grinders, throwing sparks and dust onto your inventory. They cut the old fence down, throw it in the scrap bin, and leave you with zero salvage value. This is a primitive way to run a facility.
The Engineering Logic: Physical Constraints Over Consumables
Stop treating your floor boundaries like disposable hardware. You need risk control engineering based on physical constraints.
Look at modular machine guarding built on heavy-duty mechanics. The skeleton relies on Q235 cold-rolled carbon steel, utilizing a 20x30x1.5mm tubular frame. It is built to absorb 1600 Joules of kinetic energy. That means it intercepts a 100kg object hitting it at 20km/h. When a heavy load shifts, the steel uses plastic deformation to push the impact energy down into the concrete base. It does not snap like brittle aluminum profiles.
The real space-saving math happens at the mesh. Shrink the mesh down to a 20x100mm finger-safe gap. Because fingers cannot penetrate it, ISO 13857 calculations allow you to legally drop that fence exactly 120mm from the moving hazards.
You instantly kill the 850mm dead zone. You reclaim that floor space for more Heavy Duty Pallet Racking Solutions or wider forklift traffic.
Future maintenance becomes cold work. No sparks. No grinders. A worker takes an Allen wrench, unbolts four M8 screws, and pulls a panel out in ten minutes. You adjust your racks and clip the panel back in. Your asset reuse rate stays above 95%.
The Boundaries: Hard Engineering Realities
Upgrading to engineered guarding comes with hard constraints.
- High Upfront Cost: The initial price per meter is much higher than buying raw iron from a local shop. If your procurement team only buys the cheapest steel by weight, this project fails immediately.
- Strict Anchoring: You cannot bolt this into weak asphalt. It requires a hard concrete base strong enough to handle M10 expansion bolts pulling on 140x140x5mm fully welded square bases.
- Zero Destructive Modification: You cannot let maintenance guys drill random holes into the posts to mount switches. That ruins the stress tolerance and destroys the ISO 9227 anti-corrosion coating.
- Overkill Warning: If you just need to guide truck drivers through an empty outdoor yard without any moving machinery, do not buy this. Using a 1600J impact-rated system for basic crowd control is a waste of your budget.
FAQ: Sorting Fact from Fiction
Will this block visibility for our forklift operators?
No. The black mesh absorbs metallic glare, acting like a semi-transparent screen for clear visual monitoring of the aisles.
Do we need to drill into the posts to install safety interlocks?
No. We provide pre-fabricated installation plates that match standard switches (like Omron or Pizzato) directly. Drilling ruins the posts.
Can we load heavy pallets from the top?
Yes. The system supports a top-open layout structure, designed specifically for overhead crane drops if needed.
Stop Wasting Your Floor Space
Stop guessing and stop wasting your picking aisles. Grab your tape measure.

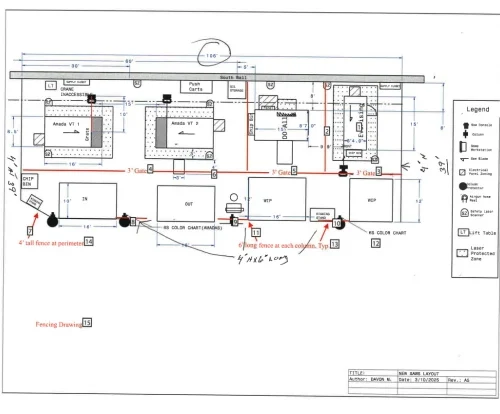

Fill out our layout form below with your warehouse dimensions and forklift load requirements. We will send you a free, preliminary layout drawing showing exactly how to optimize your floor space.
