IT ROBOT CELL GUARDING | FLOOR-SPACE CONTROL
Aluminum Safety Fence for Robot Cells: Keep 120 mm Clearance and Recover Production Space
Aluminum safety fence for robot cells combines a 20×100 mm welded wire mesh with slim 40×40 / 45×45 mm posts, helping machine guarding stay close to the hazard at approximately 120 mm while leaving more room for AGV paths, logistics, and adjacent workstations.
Why Robot Cell Guarding Often Takes More Floor Space Than Expected
A robot cell already consumes valuable production space. When a project uses a coarse steel mesh, chain-link fence, or solid barrier, the guarding layout may need a larger stand-off from the hazard. That extra perimeter can narrow AGV paths, reduce logistics clearance, and force the adjacent assembly or CNC workstation farther away. For retrofit guarding, the lost space is often as important as the fence itself.
| Layout requirement | Alfence design response |
|---|---|
| Close-to-hazard machine guarding | 20×100 mm welded wire mesh supports a compact arrangement designed around an approximately 120 mm safety distance under EN ISO 13857 assessment. |
| Limited aisle and operator space | Slim 40×40 mm or 45×45 mm aluminum profile posts reduce the frame footprint around the perimeter. |
| Line changes and retrofit work | Modular frame, post-and-panel construction, and removable panels allow the guarding to be reconfigured instead of rebuilt from scratch. |
| Installation without hot work | Bolt-free panel assembly and floor-mounted expansion-bolt connections reduce the need for on-site welding. |
Aluminum Safety Fence Details That Protect Usable Floor Area
20×100 mm Mesh for a More Compact Perimeter
The fine welded wire mesh is suited to machine guarding around robot cells, conveyors, palletizers, and CNC equipment. When the risk assessment permits an approximately 120 mm layout in line with EN ISO 13857, the panel can be positioned closer to the hazard than a less controlled or more open barrier arrangement. The result is not simply a smaller fence; it is more deliberate use of the space between the hazard, AGV path, and neighboring station.
40×40 / 45×45 mm Aluminum Posts Keep the Frame Slim

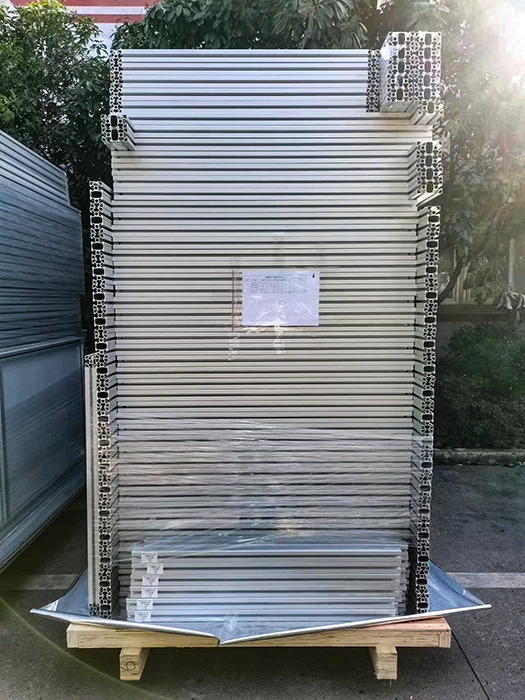

The modular frame uses T-slot aluminum posts and connecting members rather than a bulky structural enclosure. The 40×40 mm and 45×45 mm post options provide a slim perimeter for indoor plant installation, robot cell guarding, assembly line separation, and retrofit guarding. Aluminum extrusion is lightweight and corrosion resistant, while powder coating provides the specified finish for an organized production area.
Modular Parts Make Space Recovery Easier During Changeovers
A post-and-panel system can be planned in widths from 200 to 1200 mm and common heights of 1000, 1800, or 2000 mm, subject to the project design. Removable and reconfigurable panels help teams adapt guarding when a robot cell, conveyor, or material-handling route changes. The aluminum extrusion, mesh panels, foot connectors, expansion bolts, and access-door options can be coordinated around the actual production footprint.
Where the Compact Aluminum Safety Fence Layout Fits

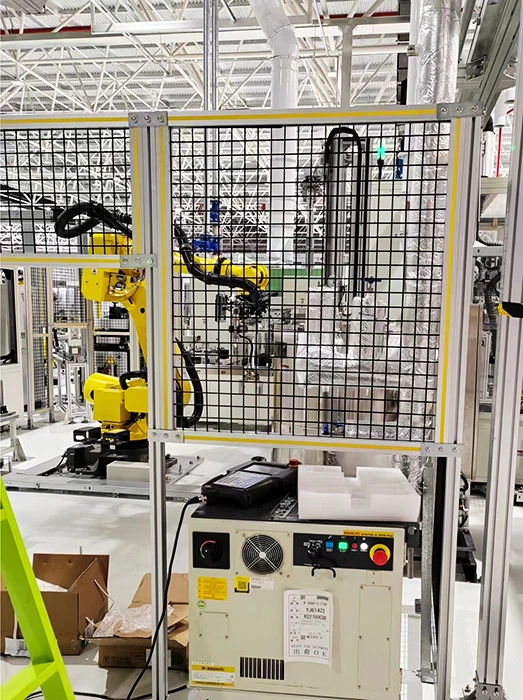

- Robot cell guarding where a yellow industrial robot shares a constrained production floor with logistics routes.

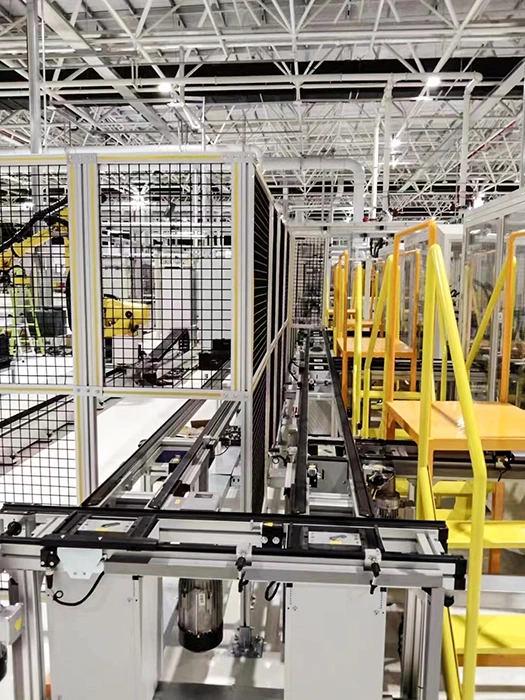

- AGV path guarding and conveyor guarding where the fence must preserve vehicle and material-flow clearance.
- Assembly line separation and palletizing zone guarding where adjacent workstations need usable operating space.
- CNC machine guarding and machine tool guarding in indoor plant installation or retrofit guarding projects.
- Automated warehouse guarding, ASRS guarding, and storage-zone isolation where floor area is tightly planned.
Alfence is a modular safety fence for physical perimeter guarding, not a fall-protection guardrail or a fully sealed machine enclosure. The final mesh, height, doors, interlock switch, and safety distance should be selected from the machinery risk assessment and applicable site requirements.
Check the Guarding Footprint Before You Freeze the Layout
Compare the robot envelope, access route, AGV or conveyor path, neighboring workstation, and required EN ISO 13857 safety distance. Then specify the 20×100 mm mesh, 40×40 / 45×45 mm posts, panel widths, access doors, and floor fixing points as one modular guarding plan. This sequence makes the space-saving result measurable before installation.
Plan an Aluminum Safety Fence Around Your Actual Robot Cell
Send the cell dimensions, hazard boundary, logistics route, and required access points. SGF can help develop an Alfence modular safety guarding layout that maintains the assessed safety distance while preserving more production and operating space.
